How the rotoscope works

Rotoscoping usually means tracing a subject one frame at a time. This version starts with features instead: find the places worth preserving, grow a region around each one, then paint every region with one average color.

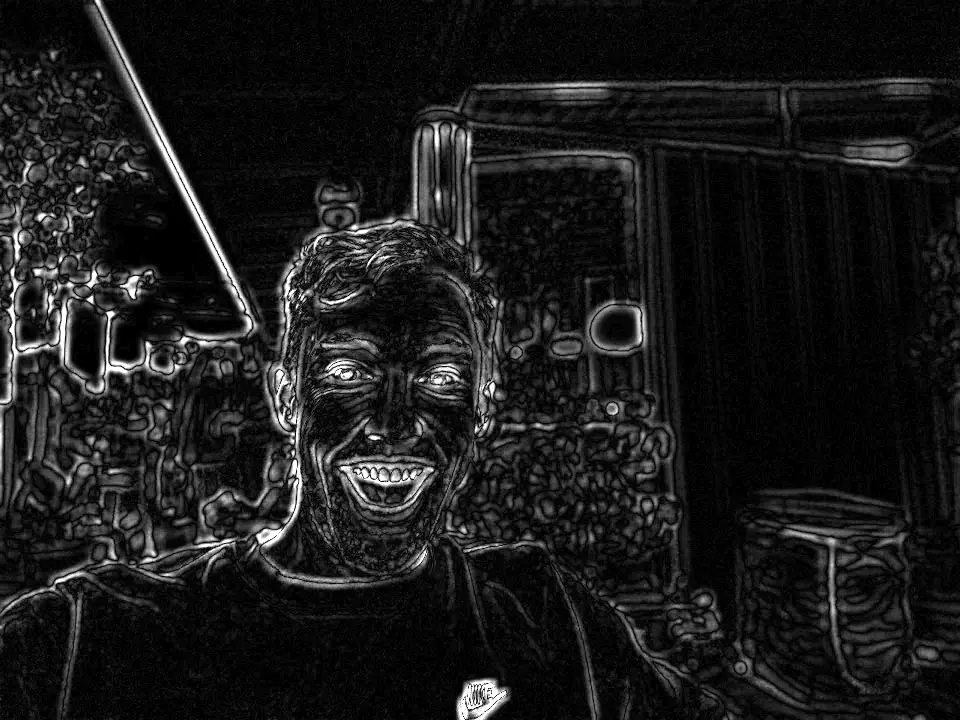

Difference image of the portrait: edges and fine detail glow against black — Difference

Feature markers on the portrait, colored by face, body, and background tier — Difference

Start with what changed

The original algorithm compares a frame with a clean background. On this page there is only one portrait, so a blurred copy stands in for that second frame. Subtract the two and the quiet parts disappear. Edges and small details stay bright.

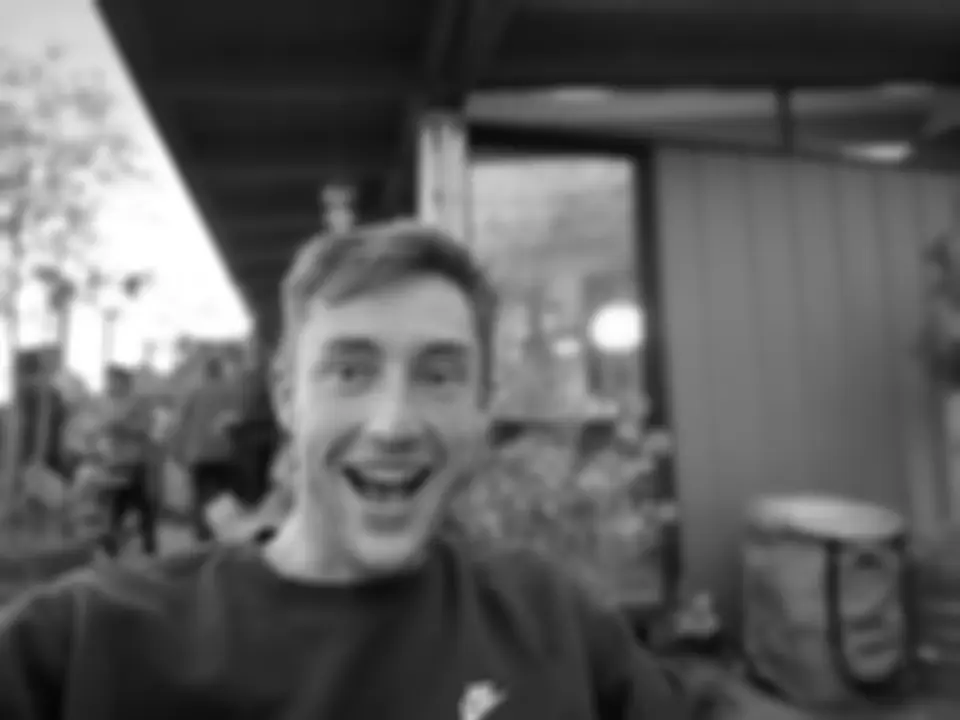

Blurred grayscale copy of the portrait — Blurred copy

Difference between the portrait and its blurred copy, brightened for display — Difference

Spend detail where it matters

Shi–Tomasi scores the corners and texture in the difference image. The strongest points become markers. Half go to the face, three in ten to the body, and the rest to the background, so a busy wall cannot steal all the detail. Those 50/30/20 shares are the paper and engine defaults. The homepage portrait overrides them to 70/22/8 so the face keeps most of the budget, and that is the pass shown here.

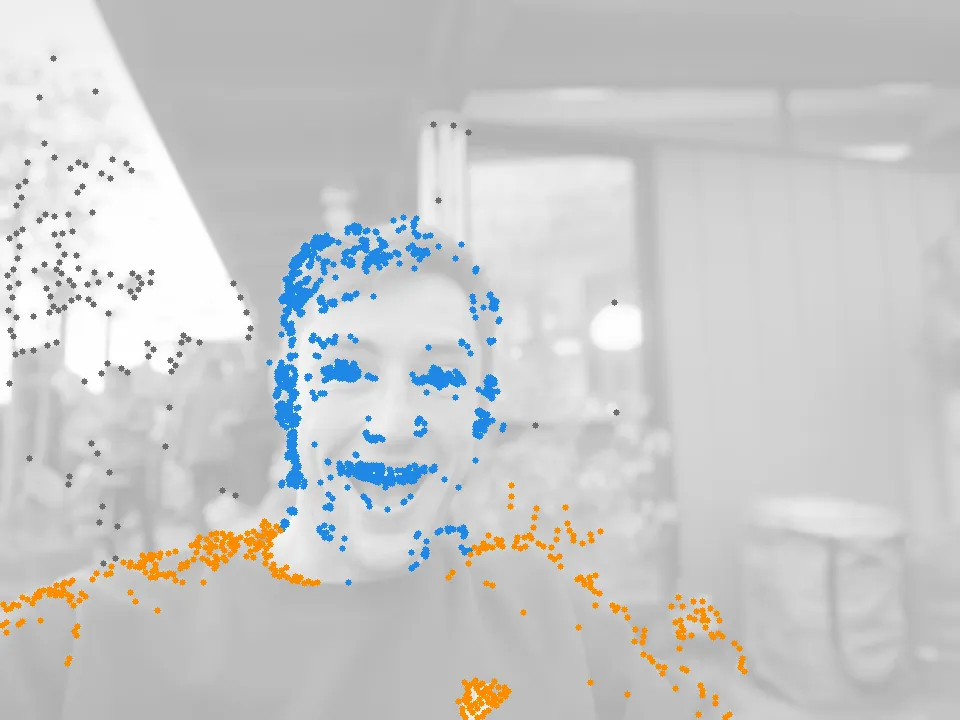

The 1,600 selected markers over a lightened portrait: blue on the face, orange on the body, gray in the background — Face 70%Body 22%Background 8%

Let the regions grow

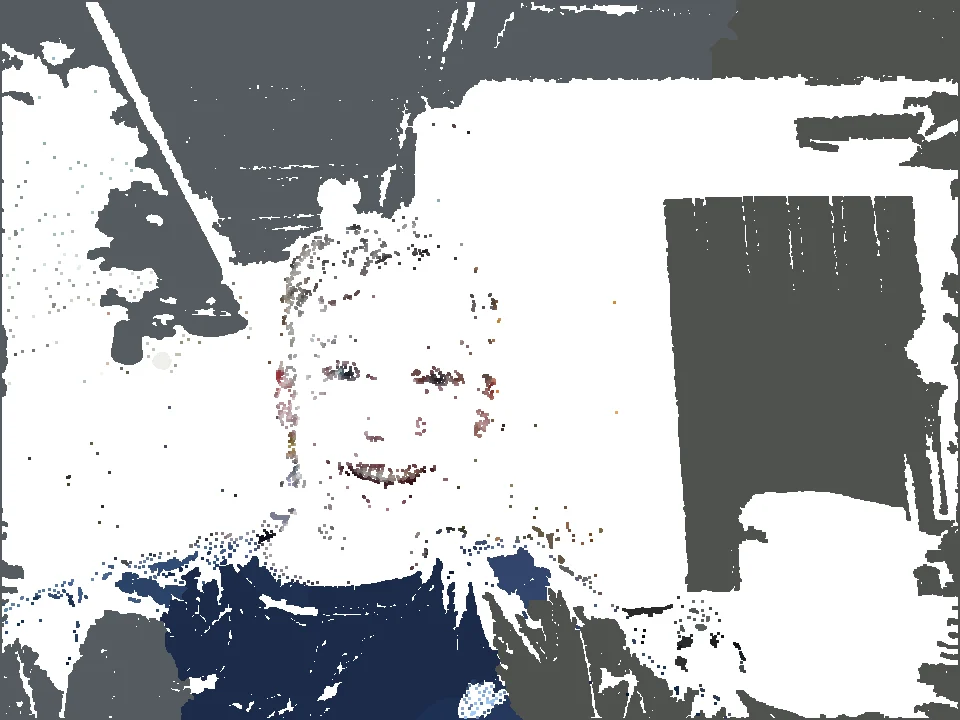

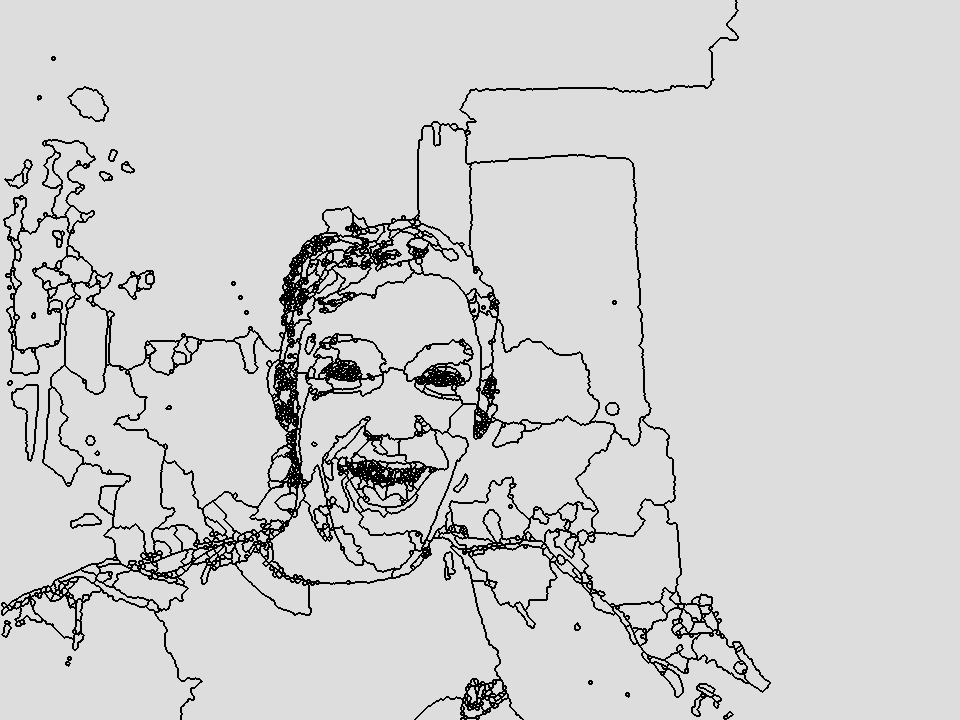

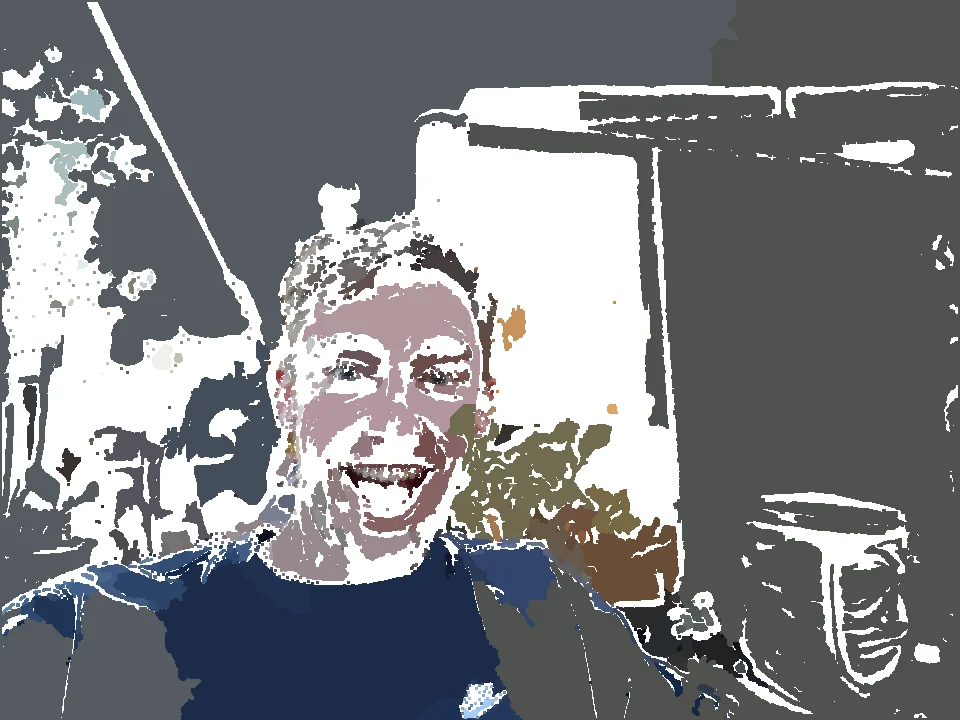

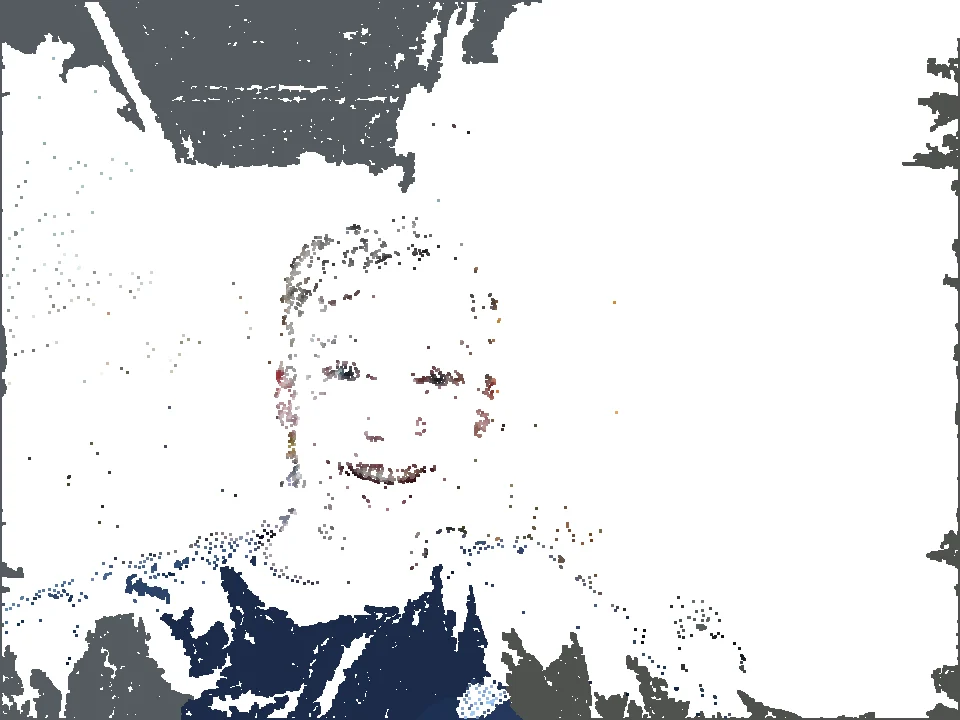

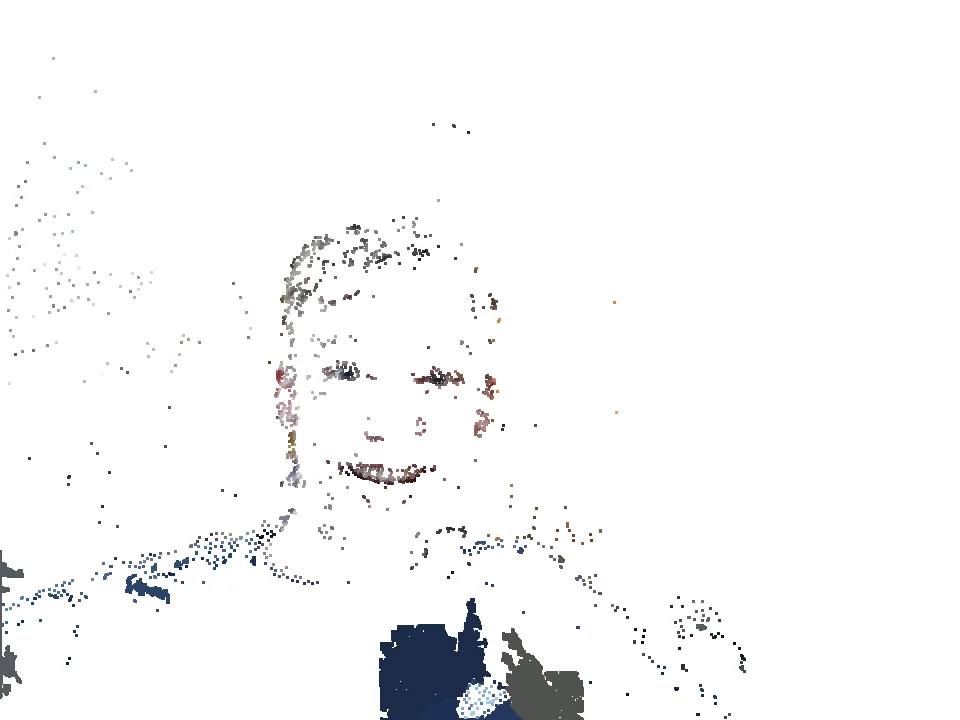

Imagine dropping every marker onto a landscape made from image edges. Each marker floods outward through easy ground and slows at a strong edge. When every pixel has been claimed, the image is divided into catchment basins.

Replace pixels with paint

The final step forgets the tiny differences inside each basin. It averages the source colors in that region and fills the whole shape with one flat color. Hundreds of thousands of pixels become sixteen hundred painted pieces.

The source portrait, hundreds of thousands of individual pixels — Pixels

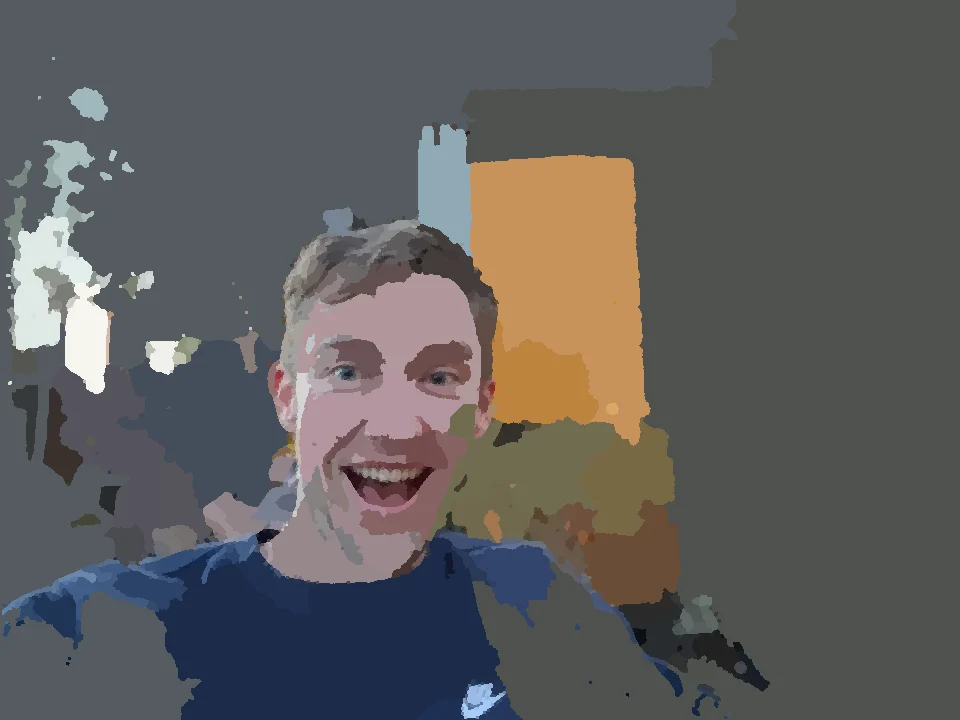

The finished rotoscope: every basin filled with its average color — Painted regions

What changed for the browser?

The 2017 version used a clean background frame. The browser demo uses a blurred copy of one portrait instead. The stage order stays the same; two small kernels are simplified so it can run quickly at display size.
